7) NIS Elements GA3 Dictionary – Binary Operations

Generic selectors
Exact matches only
Search in title
Search in content
Post Type Selectors

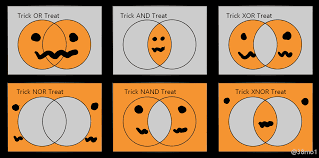

Types of Logic Gates as portrayed by Trick Or Treat Signs! : r/coolguides

AndTakes 2 binary inputs and acts as an AND logic gate.
And MultiTakes any number of binary inputs and acts as an AND logic gate.
OrTakes 2 binary inputs and acts as an OR logic gate.
Or MultiTakes any number of binary inputs and acts as an OR logic gate.
XorTakes 2 binary inputs and acts as an XOR logic gate.
Xor MultiTakes any number of binary inputs and acts as an XOR logic gate.
EquivalenceActs as an XNOR gate for 2 binary inputs.

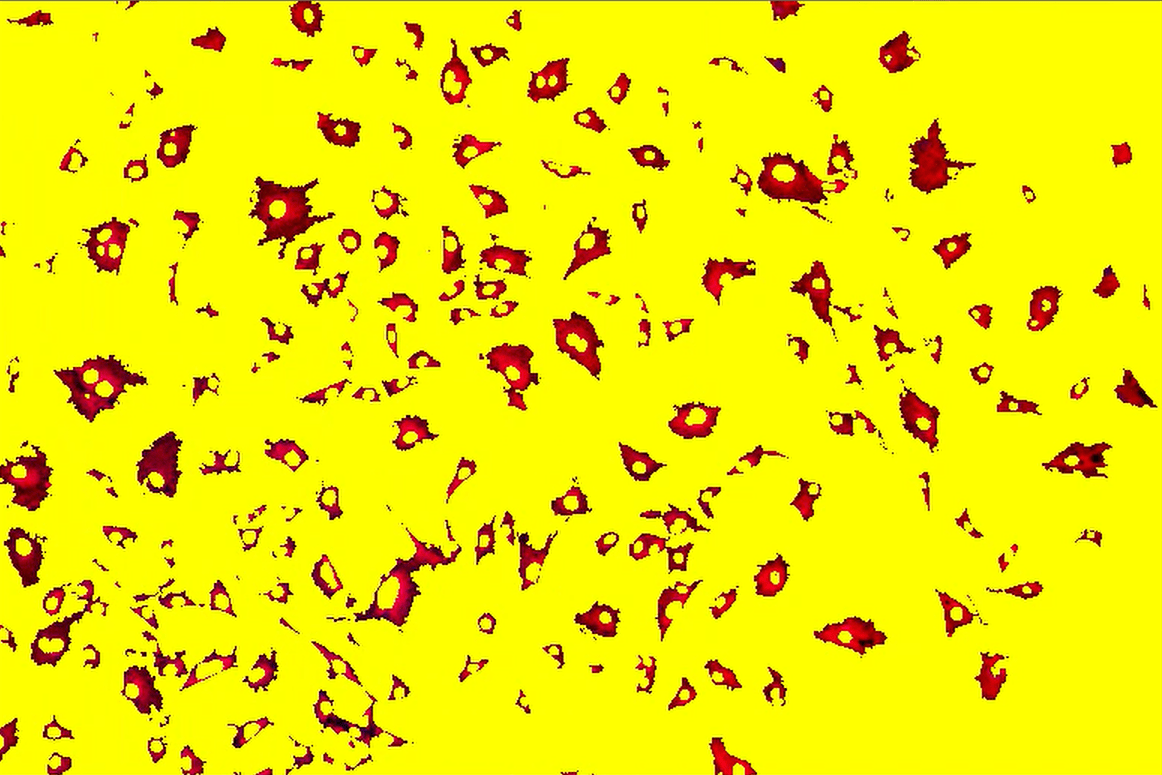

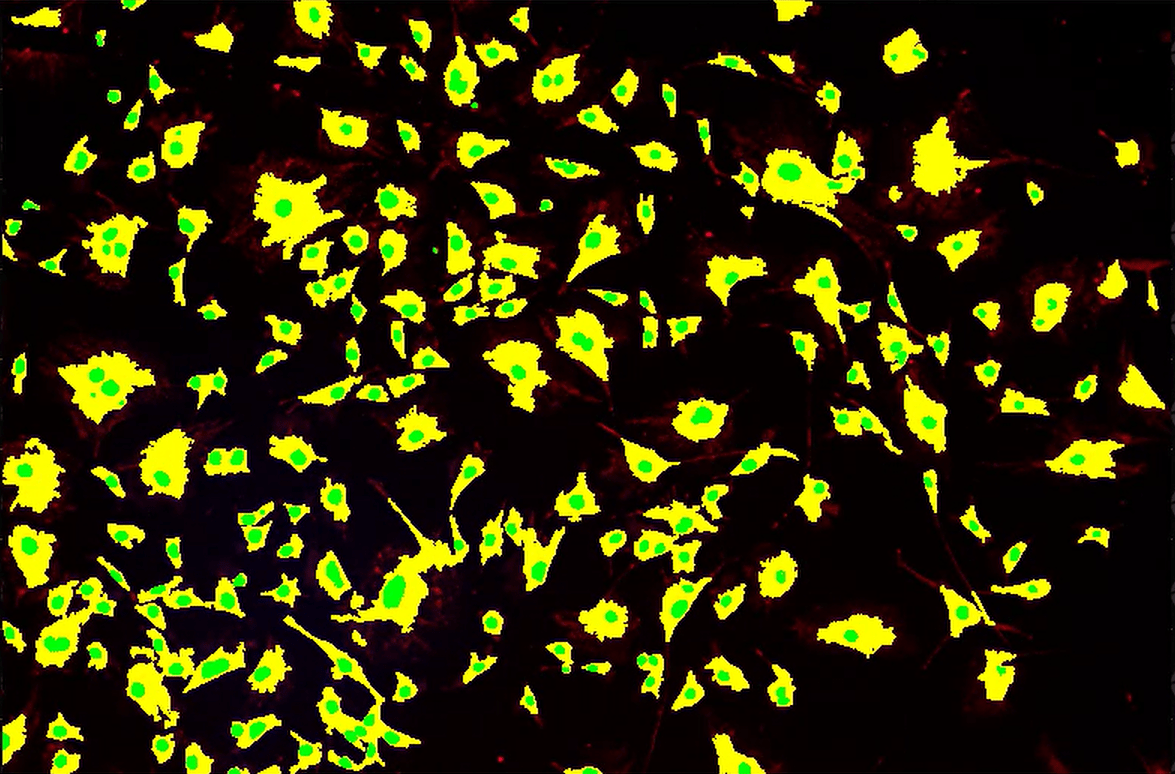

A yellow and black backgroundDescription automatically generatedA yellow background with red spotsDescription automatically generated
HavingKeeps only objects having both input layers.
A yellow and green spots on a black backgroundDescription automatically generatedA red and yellow lightDescription automatically generated with medium confidence
NOT HavingKeeps only objects that do not touch the other binary layer.
A yellow and green spots on a black backgroundDescription automatically generatedA yellow and red lightDescription automatically generated with medium confidence
InvertInverts the input binary layer. Same as Complement from binary processing.

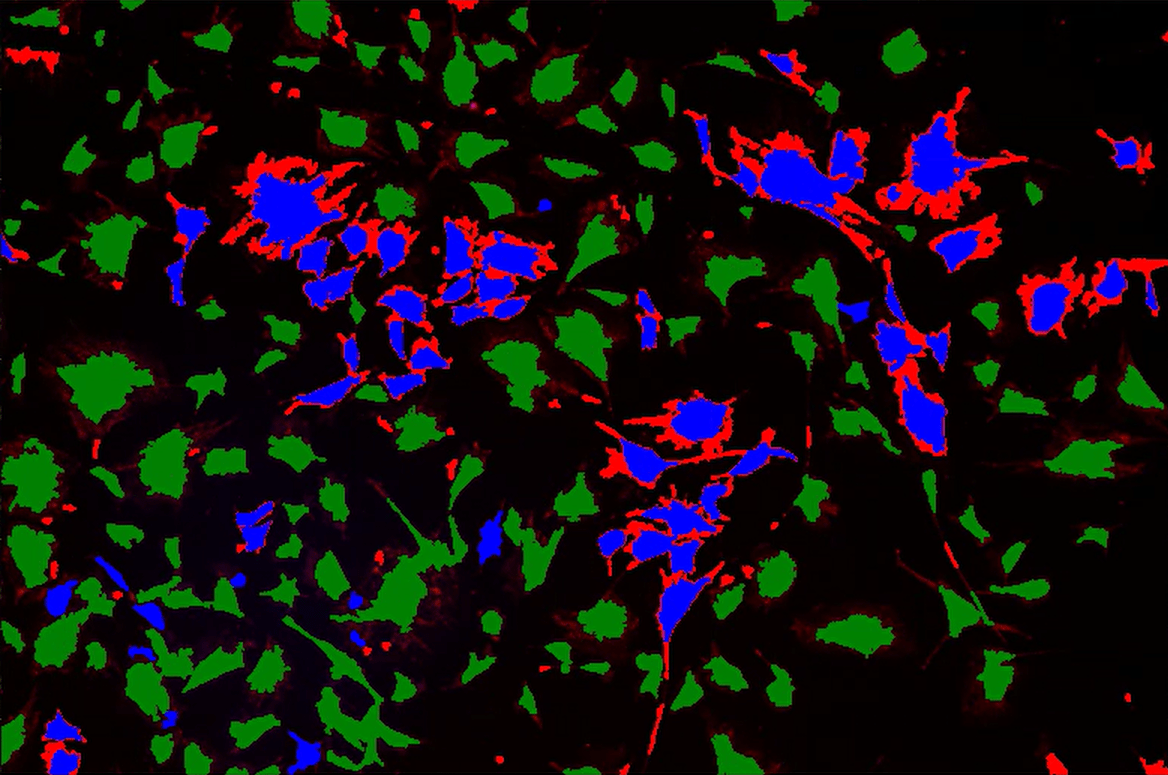

Detection ClassifierTakes 2 binary inputs: ground truth (light blue here, made using a more sensitive segmentation) and predicted (yellow here). Classifies predicted layer into true positives (green), false positives (blue), and false negatives (red).
A yellow and blue spots on a black backgroundDescription automatically generatedA close up of a plantDescription automatically generated
