3) NIS Elements GA3 Dictionary – Image Operations

Add (Image x Image)	Added image’s own DAPI component. Might be useful for emphasizing nuclei/filaments while still showing other elements.

Subtract (Image x Image)	Subtracted image’s own DAPI component after splitting RGB into separate channels. DAPI was subtracted from blue (subtracting from RGB resulted in a black image).

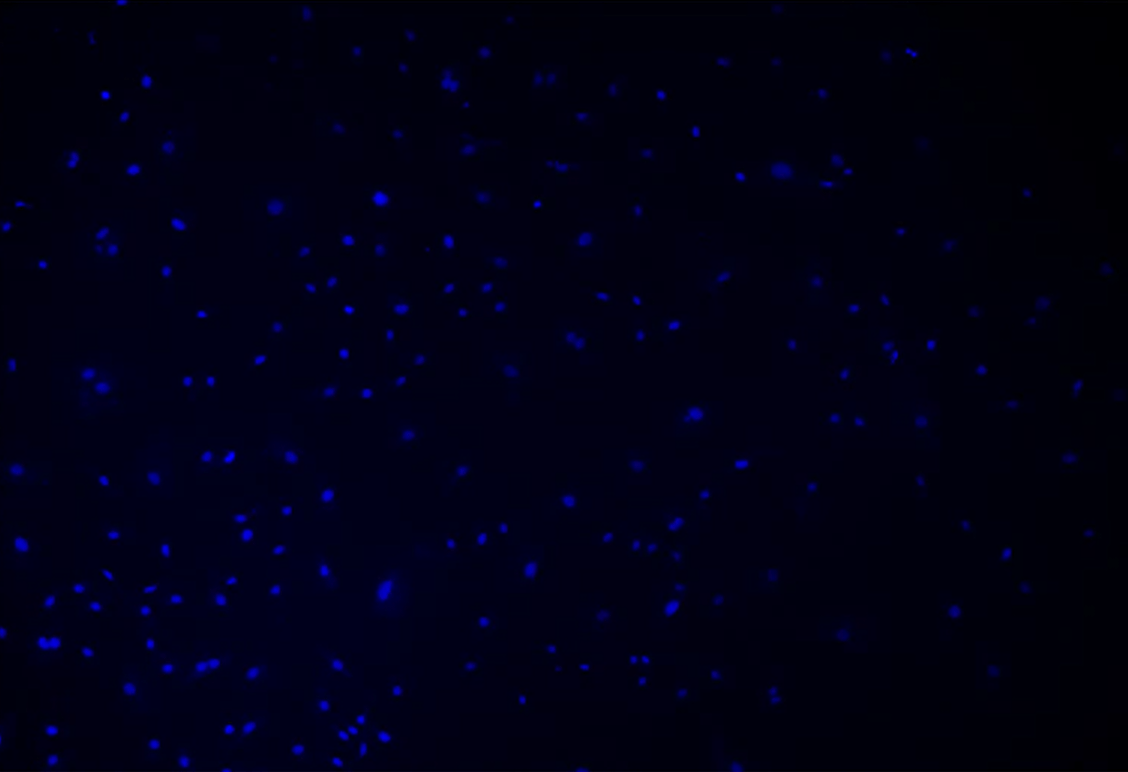

Multiply (Image x Image)	Multiplied by image’s own DAPI component, resulted in a dimmed version of the DAPI channel with only blue in the histogram. May be useful for isolating components while also denoising.

Divide (Image x Image)	Divided image by its own DAPI channel, which resulted in an entire image of pixels with RGB (0,0,1). Applied Auto Contrast afterwards to emphasize the result. Not sure this option has many applications. Suppose you could divide by a grid to get gridlines? Images have to be the same size to use divide.

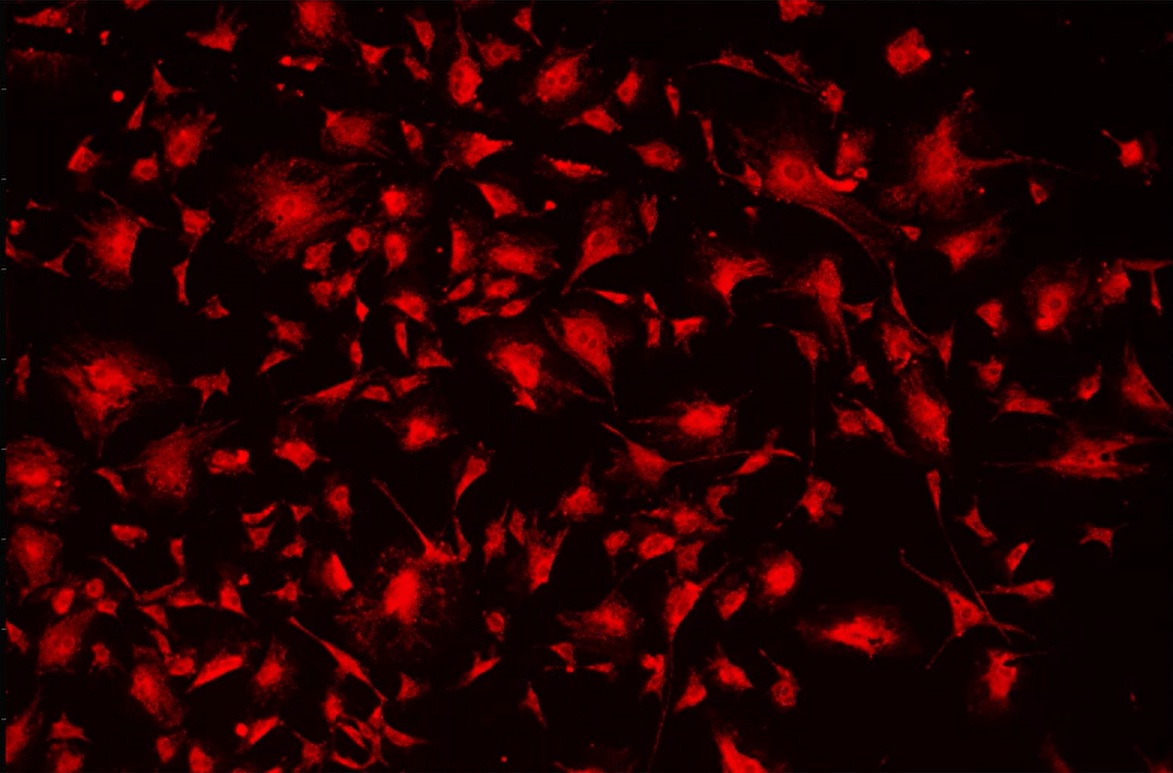

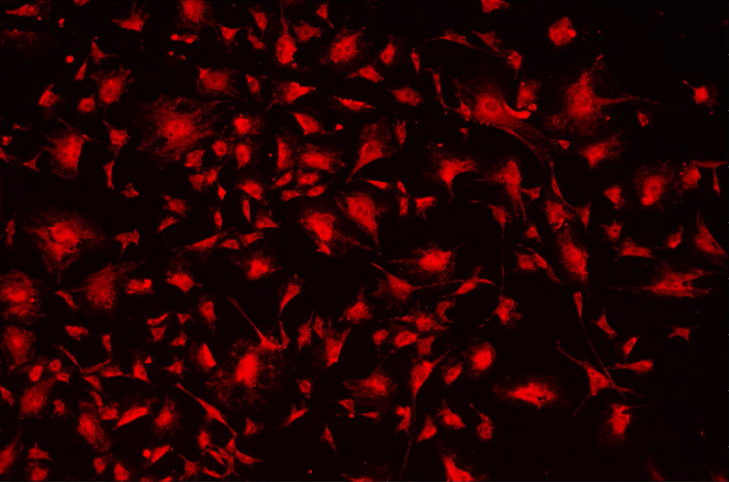

Minimum	Takes the minimum of the input images. Used the FITC component of the original image, which resulted in the blue component being removed. May be useful for a timelapsed sequence of images to highlight changes between frames.

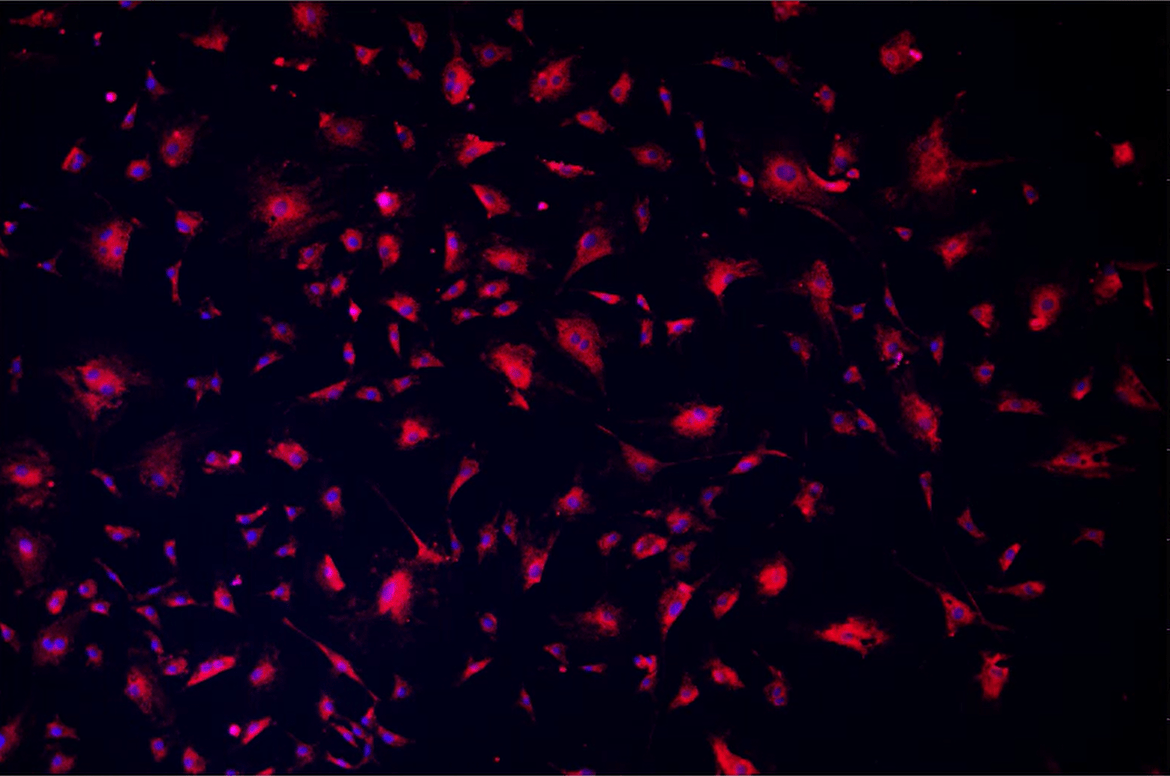

Maximum	Takes the maximum of the input images. Used a 20X portion of the original image, resulting in both 10X and 20X cells appearing.

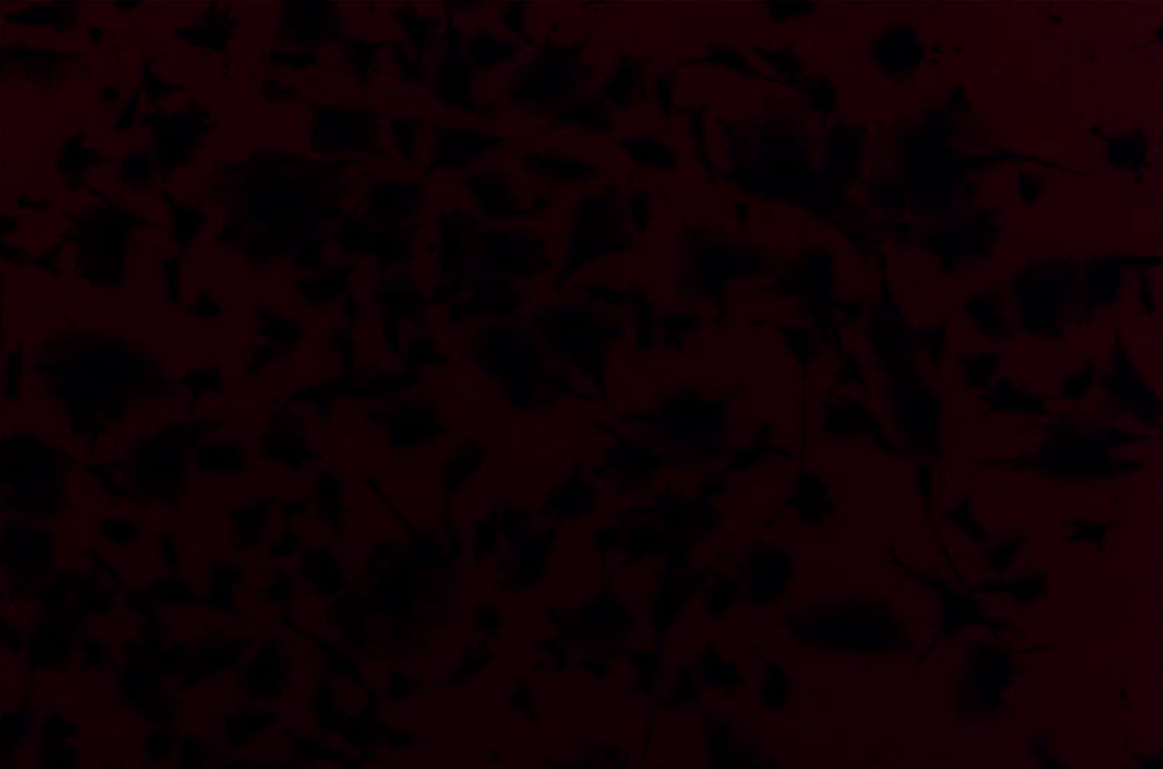

Covariance	Finds covariance between images of each pixel. Probably best for grayscale images. Used the DAPI channel of the original image as the other input, which resulted in high FITC signal areas having lower covariance of red. Output is a float image with values for each color channel.

Mask Image	Supposed to mask image using a binary. Tried using a binary to detect nuclei and using that as a mask but could not get it to work.

Blend	Supposed to blend a specified foreground and background using a third image to specify each pixel’s weight, could not get it to work.

Shading	Performs a shading correction on the first image specified by the second image. Worked like Divide but with higher resultant intensity (did not increase contrast here) when correcting original image by its own DAPI component.

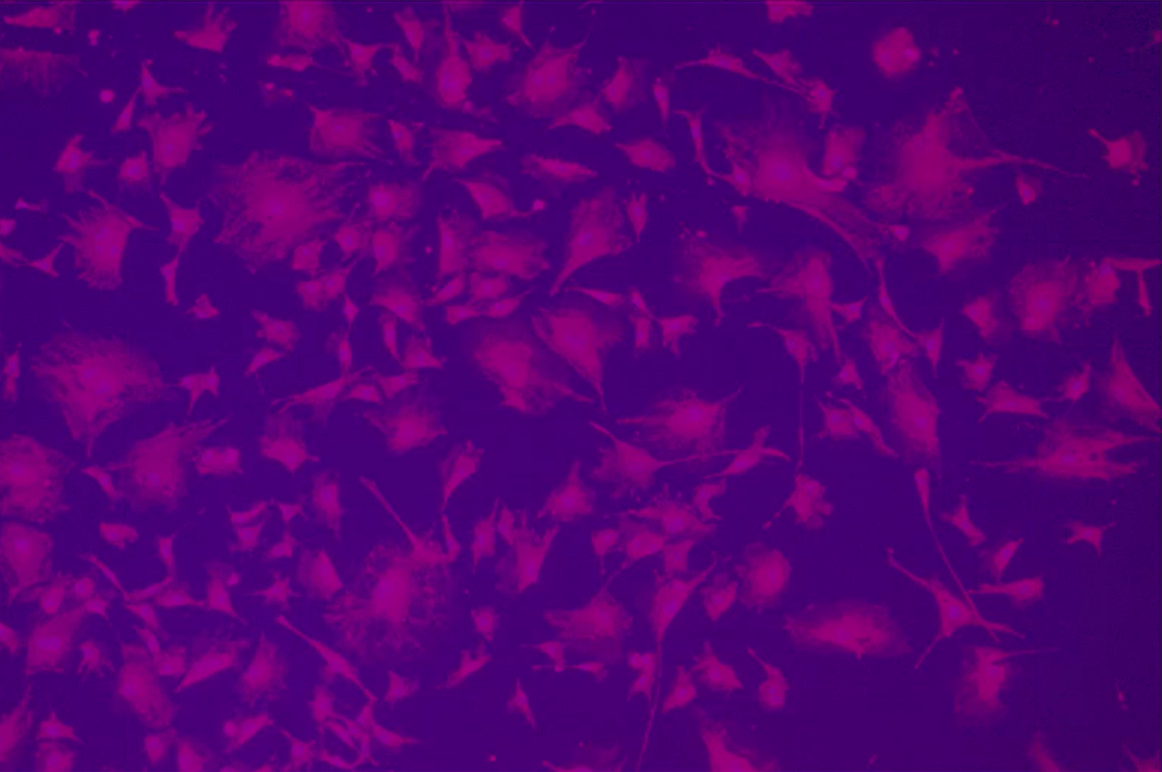

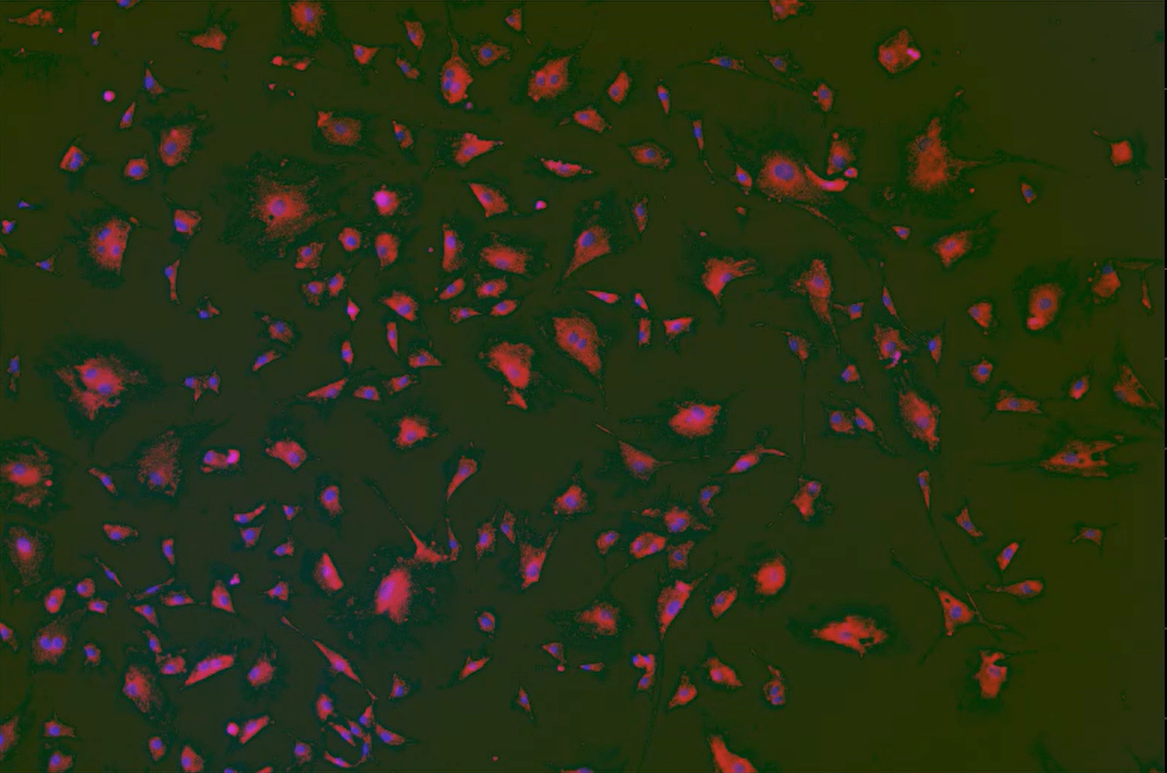

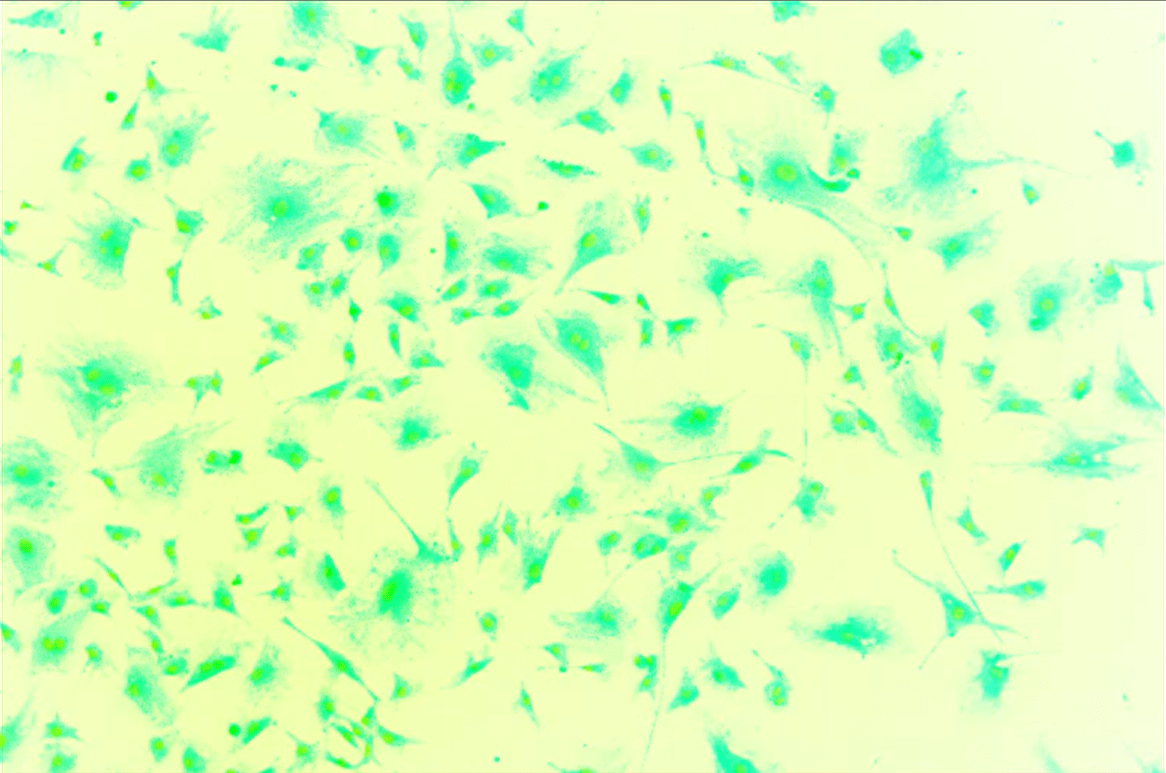

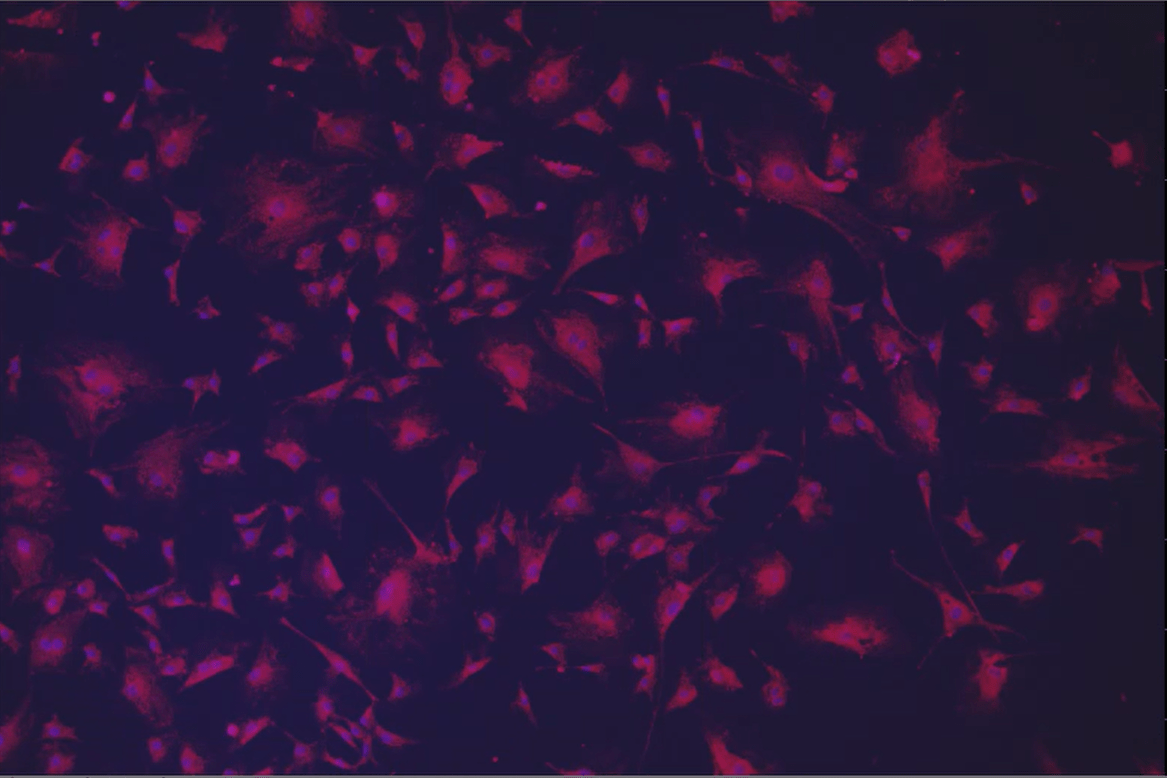

Add (Image x Constant)	Adds specified constant to R, G, and B values of each pixel. Used 50 here (meaning a pixel with 10/0/75 would become 60/50/125). It ended up desaturating the image, if higher values are used the image becomes closer to white.

Subtract (Image x Constant)	Subtracts specified constant from R, G, and B values of each pixel. This image had 0 for the green channel, so subtracting resulted in a negative value which showed up as a black screen. However, applying Abs to the result made the green values positive and the image visible. Subtracted 50 and then used Abs here.

Multiply (Image x Constant)	Multiplies R, G, and B values of each pixel by the specified constant. Used 5 here. Output is a float image.

Divide (Image x Constant)	Divides R, G, and B values of each pixel by the specified constant. Used 10 here. Output is a float image.

Clip	Sets the R, G, and B values of each pixel to fall in between the specified bounds. Values within the bounds are unchanged, values lower than the min are set to the min, and values higher than the max are set to the max. I used bounds of 10 and 80, which would set a pixel with 113/0/61 to 80/10/61.

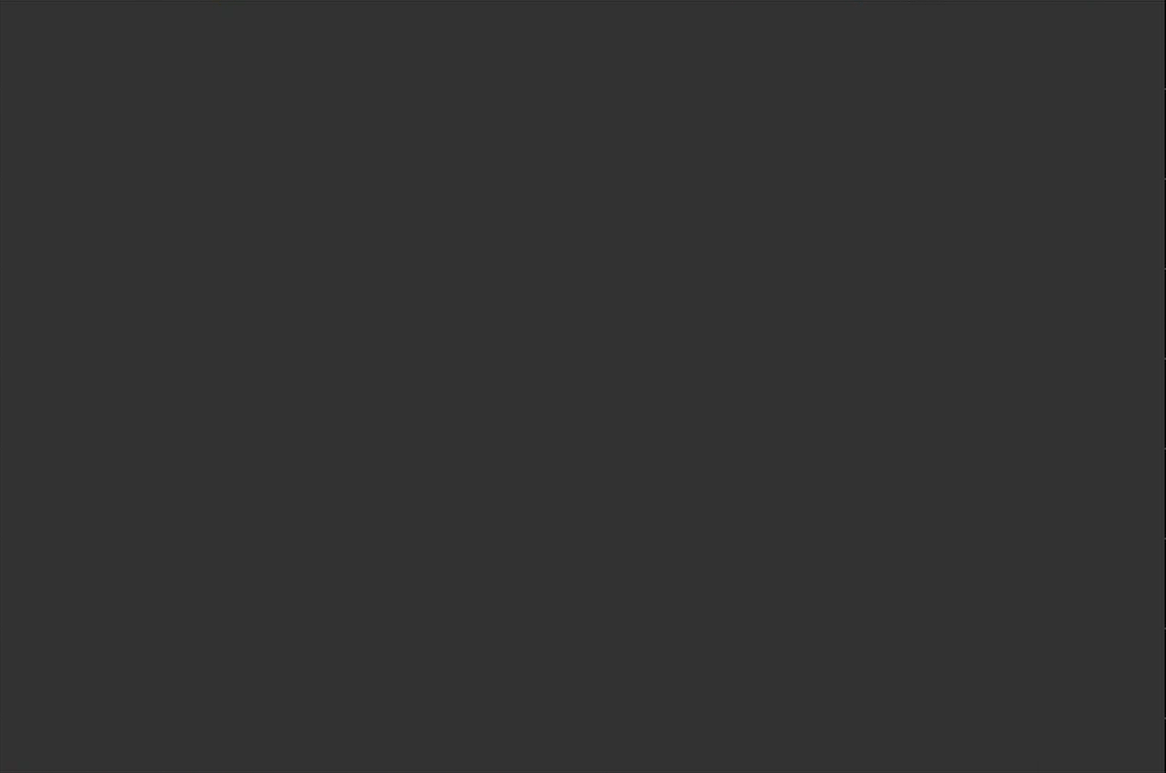

Constant Value	Sets R, G, and B values of each pixel to the specified constant, which just results in a uniform gray. Not sure this has many applications. Used a constant of 50 here.

Abs	Takes the absolute value of each pixel’s RGB values. Useful if you have negative values after using something like Subtract (see above), has no effect if values are already all positive.

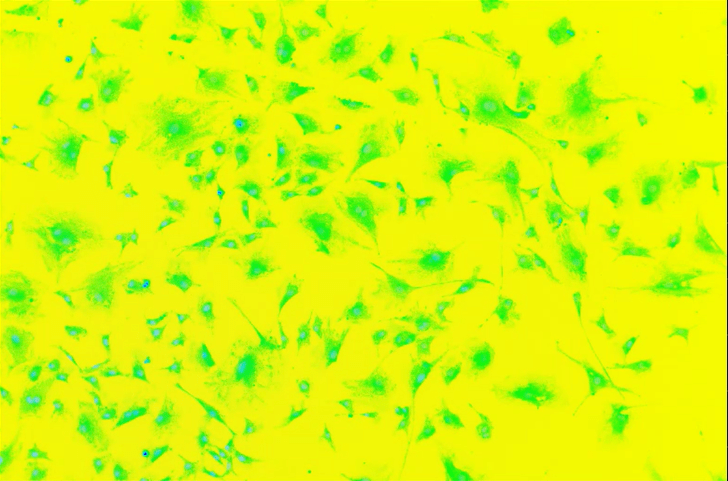

Invert	Sets RGB values to 255-original value, which inverts image colors.

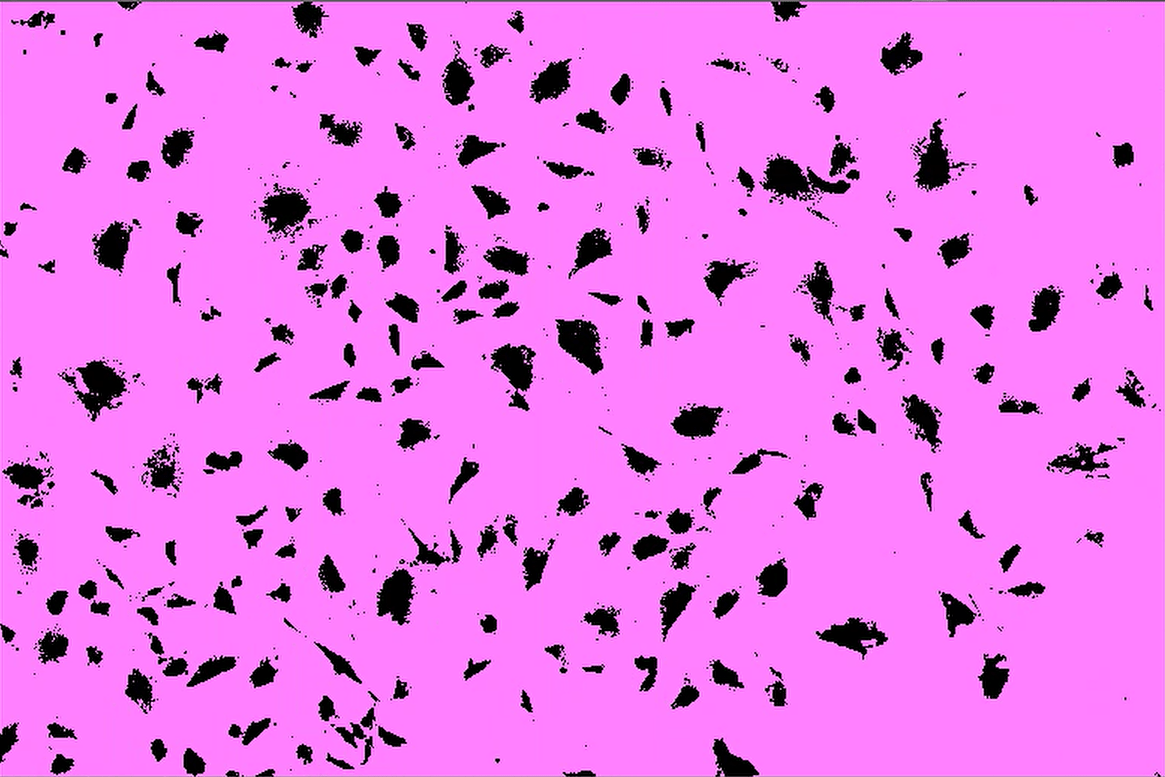

Exp	Each pixel’s RGB value is set to (specified base)^(original value). Results in very large RGB values. If original value causes result to exceed 32-bit float limit (on the order of 10^38), value is set to infinity and pixel is black. Used base 2 here, anything larger caused large parts of image to overflow.

Inv	Each pixel’s RGB value is set to its reciprocal (1/original value). Used auto contrast on the result to enhance visibility, but result is still quite dim. Output is a float image.

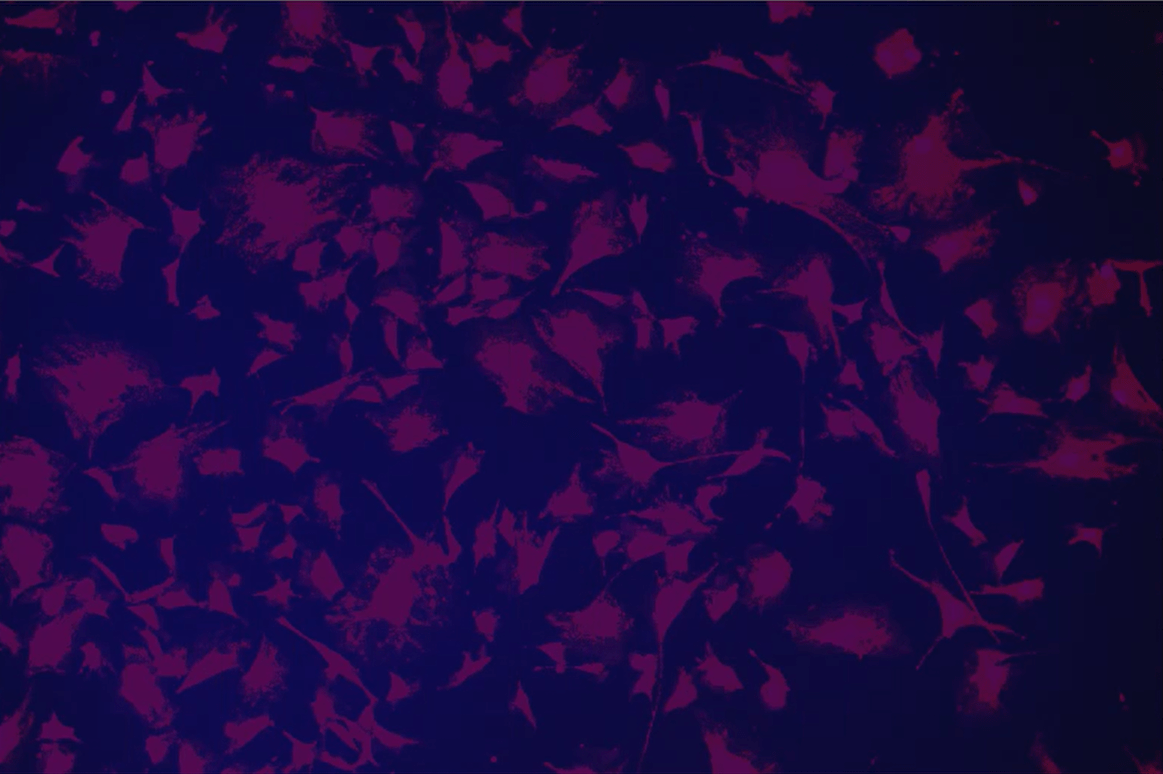

Log	Sets each pixel’s RGB value to log of specified base (original value). Used the default base of 10 here. Output is a float image.

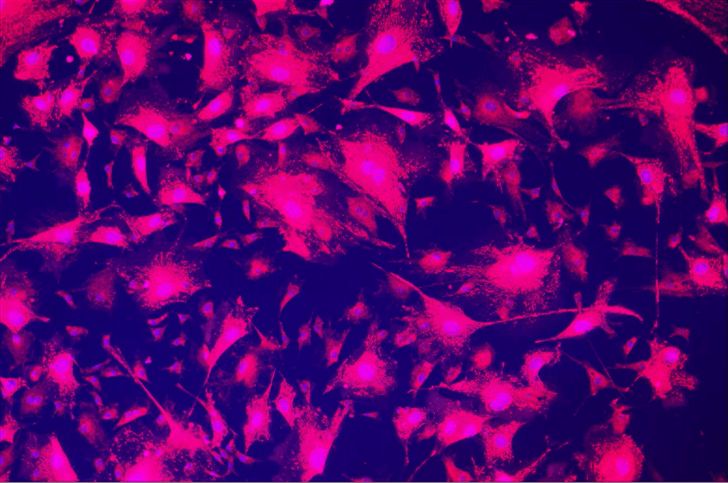

Pow	Sets RGB value of each pixel to (original value)^(specified exponent). The default value of 2 did a good job at separating cells/sharpening the image, but noise reduction should still be used. Highly recommend this one!
